28in - 36in pipe High Efficiency Hydraulic Pipe Cutting And Beveling Machine Long Service Life
Hydraulic Pipe Cutting And Beveling Machine Features:
-
The split frame clamshells use extremely low eight aluminum boy, easily setup in both on-site and workshop
-
This pipe cutting machine is easy to use, one operator can mount and dismount the machine on pipe within minutes
-
This pipe cutting and beveling machine has excellent stability and enhanced gear heat treatment to ensure expanded machine life
-
Heavy Duty, cutting and beveling simultaneously
-
Suitable for cut all kind of materials, from cast iron, high strength alloy, to stainless steel
-
Base plate can be easily installed and uninstalled, for workshop and field application
-
This portable pipe lathes have several models available, covering OD from 65mm to 1500mm, wall thickness can reach up to 6”(150mm)
Hydraulic Pipe Cutting And Beveling Machine Application
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
Hydraulic Pipe Cutting And Beveling Machine Features
■ Split frame structure, can be quickly install
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
Hydraulic Pipe Cutting And Beveling Machine Specification
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy
Beveling type

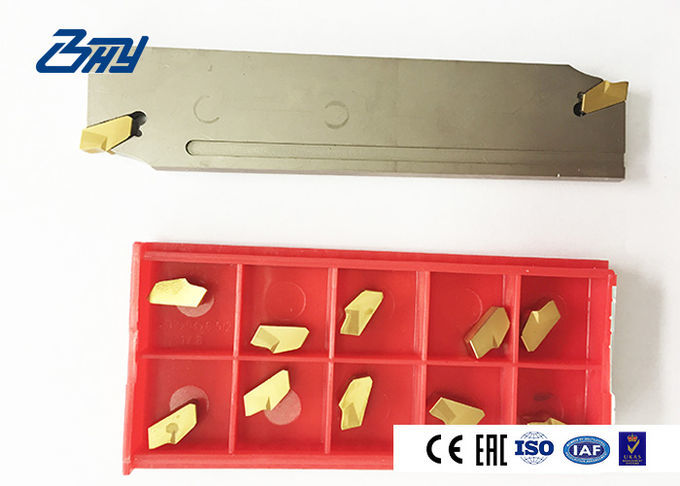

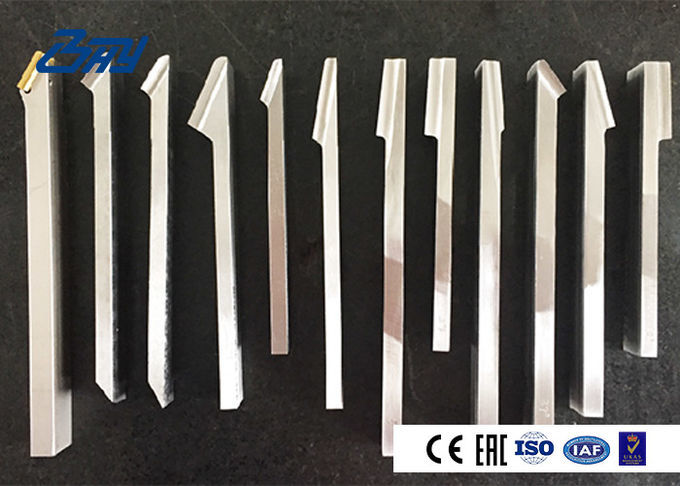

SFM Tools
Models
| Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
| SFM1420 | 14"~20" | 100 | 76 | Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 |
| SFM2026 | 20"~26" | 100 | 130 |
| SFM2430 | 24"~30" | 100 | 142 |
| SFM2632 | 26"~32" | 100 | 150 |
| SFM3036 | 30"~36" | 100 | 159 |
| SFM3642 | 36"~42" | 100 | 179 |
| SFM4248 | 42"~48" | 100 | 198 |
| SFM4860 | 48"~60" | 100 | 642 |
| SFM6072 | 60"~72" | 100 | 730 |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.
Manufacture

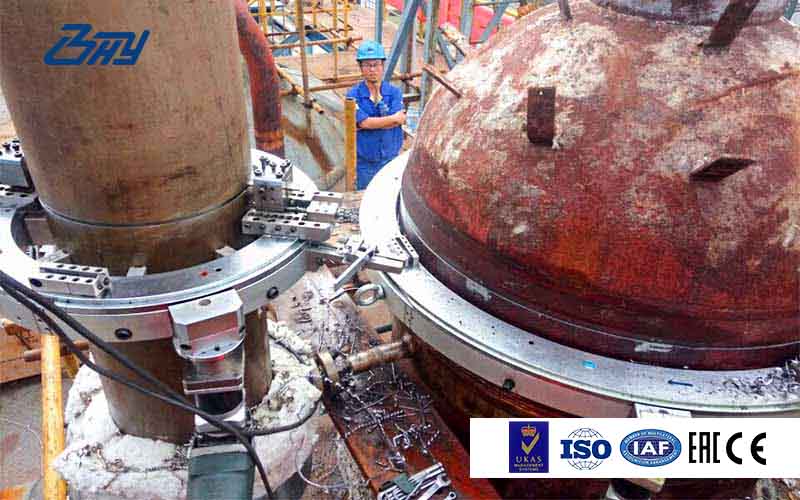

Working On Site
