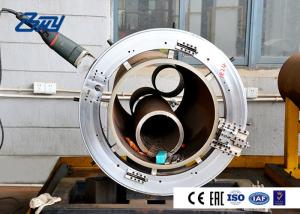

Electric Cold Pipe Cutter And Beveler Anodizing Sand Blasting Finish

Brand Name : BHY

Model Number : SFM3642E

Certification : ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T,

Supply Ability : 1000 sets/year

Delivery Time : 30-45 work days

Packaging Details : Aluminum case, wooden case or metal packing case

Model : SFM3642E Cold Pipe Cutter And Beveler

Drive Mode : Electric

Finish : Anodizing sand blasting

Function : Cut, bevel, counterbore, drill and mill pipes

Application : Nuclear power, thermal power, chemical plant, natural gas, boiler plant, pharmaceutical factory

Tool slide : Spring,thick-wall,drilling&beveling tool slides

Contact Now

High Strength Cold Pipe Cutter And Beveler Anodizing Sand Blasting Finish

Cold Pipe Cutter And Beveler Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

Cold Pipe Cutter And Beveler Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Cold Pipe Cutter And Beveler Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Cold Pipe Cutter And Beveler Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz

■ Feed mode: Star wheel, automatically

■ Feed rate: Fixed@0.08mm per circle

■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

Electric Cold Pipe Cutter And Beveler Anodizing Sand Blasting Finish

Manufacture

Electric Cold Pipe Cutter And Beveler Anodizing Sand Blasting Finish

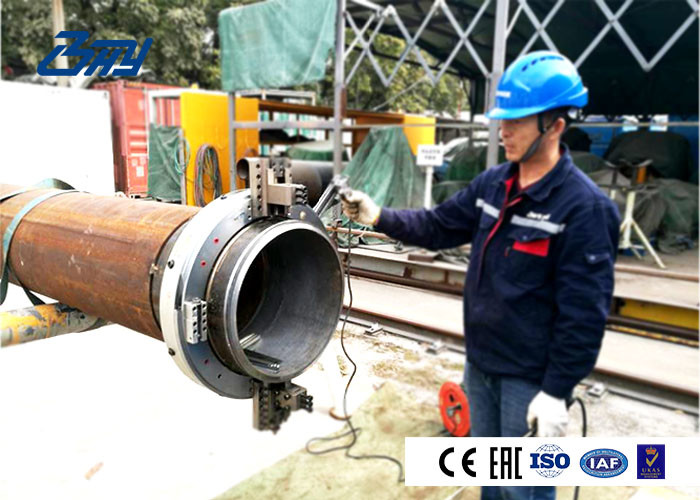

Working On Site
